FIXED PITCH FANS

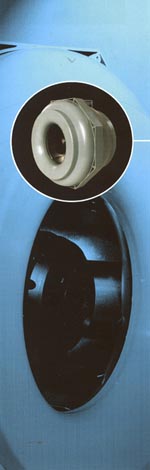

ILC FAN


ILC FAN


KEY FEATURES
 100 mm - 315 mm diameter inlet/outlet
- Volume flow up to 0.46 m3/s (977 ft3/min)
- Total pressure up to 600 Pa (2.4 in. wg)
- Durable light weight construction
- Easy to install
- Speed control on all fans
- Multi-functional
- Low noise levels
- 2 year guarantee
SIZES:
ILC/1 - 100 mm, ILC/2 - 125 mm,
ILC/3 - 150 mm, ILC/4 - 200 mm,
ILC/5 - 250 mm, ILC/6 - 315 mm.

FAN PERFORMANCE:
All the advantages of axial flow fans combined with the benefits of the radial fan pressure characteristics. Built in guide vanes sizes 150 mm and above.

IMPELLERS:
100-250 mm sizes are manufactured from plastic materials incorporating metal-back plates. 315 mm size is of all metal construction.
MOTORS:
All sizes utilise an external-rotor motor to IP44 standards and an internally mounted capacitor. All motors are supplied with sealed for life bearings and overheat protection. All fans are speed controllable with Woods speed controllers.

ELECTRICAL SUPPLY:
220-240 V / 50 Hz /1 phase only.
TEMPERATURE RANGE:
100 to 250 mm -25°C to 50°C
315 mm -25°C to 40°C
CASINGS:
All fan casings are manufactured from robust, fire retardant polyamide glass-fibre impregnated material providing durable and lightweight construction. The fan casing offers circular inlet and outlet connections with a built in terminal box.
ANCILLARY EQUIPMENT:
Non-return damper, Duct mounting clamps, Silencers and Speed controllers.
